Eliminate the Bottleneck in Dome Cutting
Manual dome cutting is slow, inconsistent, and labor-intensive. FabX Automation’s Robotic Dome Cutting Cell replaces hours of skilled manual work with a fast, repeatable, and safe automated process built for modern fabrication.
Reduce skilled dome-cutting labor by 60-90%
Not Just an Incremental Improvement. A Transformation in Productivity.
If your are cutting domes manually, you are spending skilled labor on a process that is hard to scale and difficult to keep consistent. This cell is designed to change that.
In a standard dome cutting case study:
Manual Cutting: 97 minutes
Robotic Cutting (First Part): 17 minutes
Robotic Cutting (Subsequent Parts): 9 minutes
That means faster turnaround, more predictable output, and a clearer path to growth without an increase in skilled labor

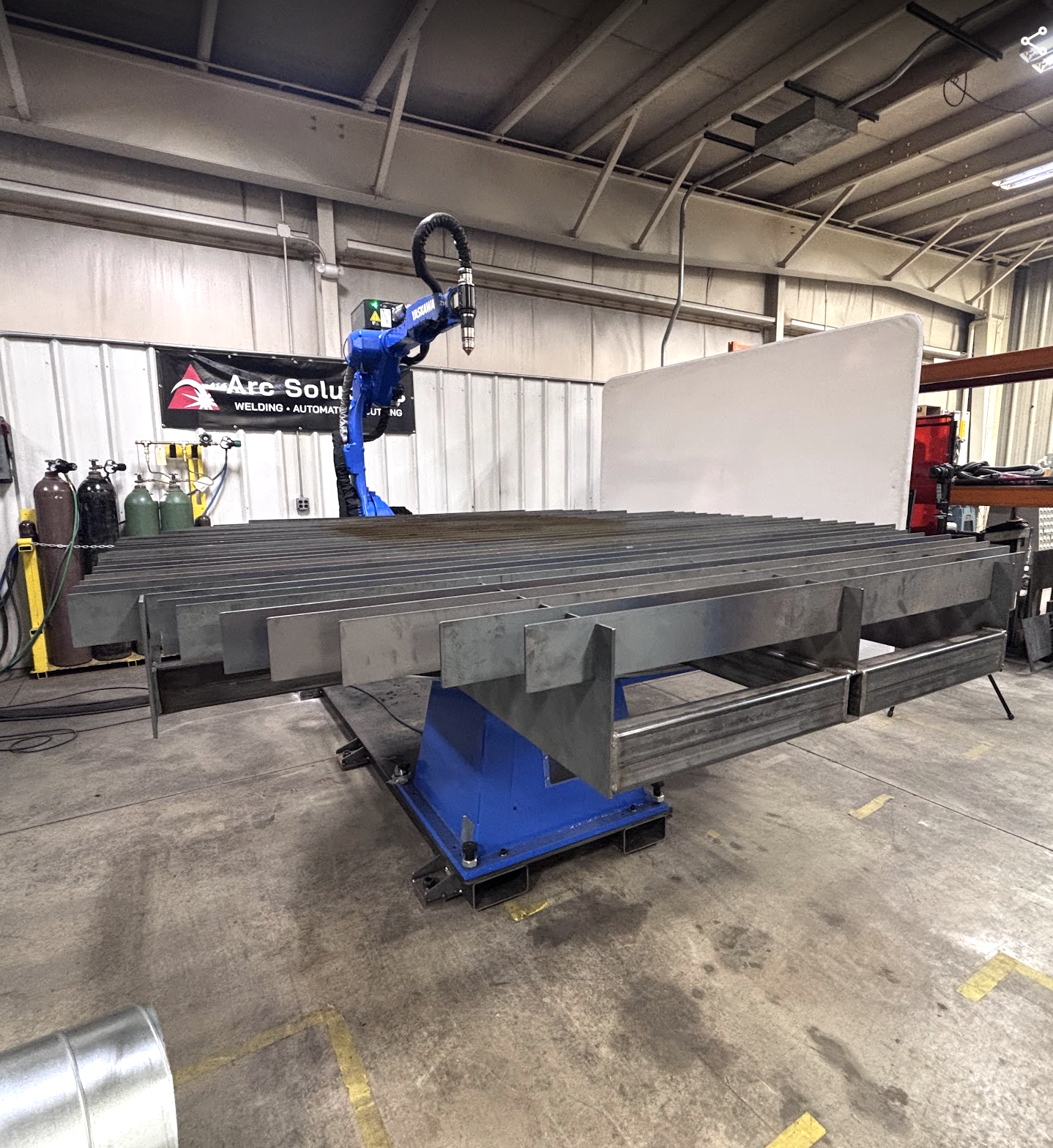

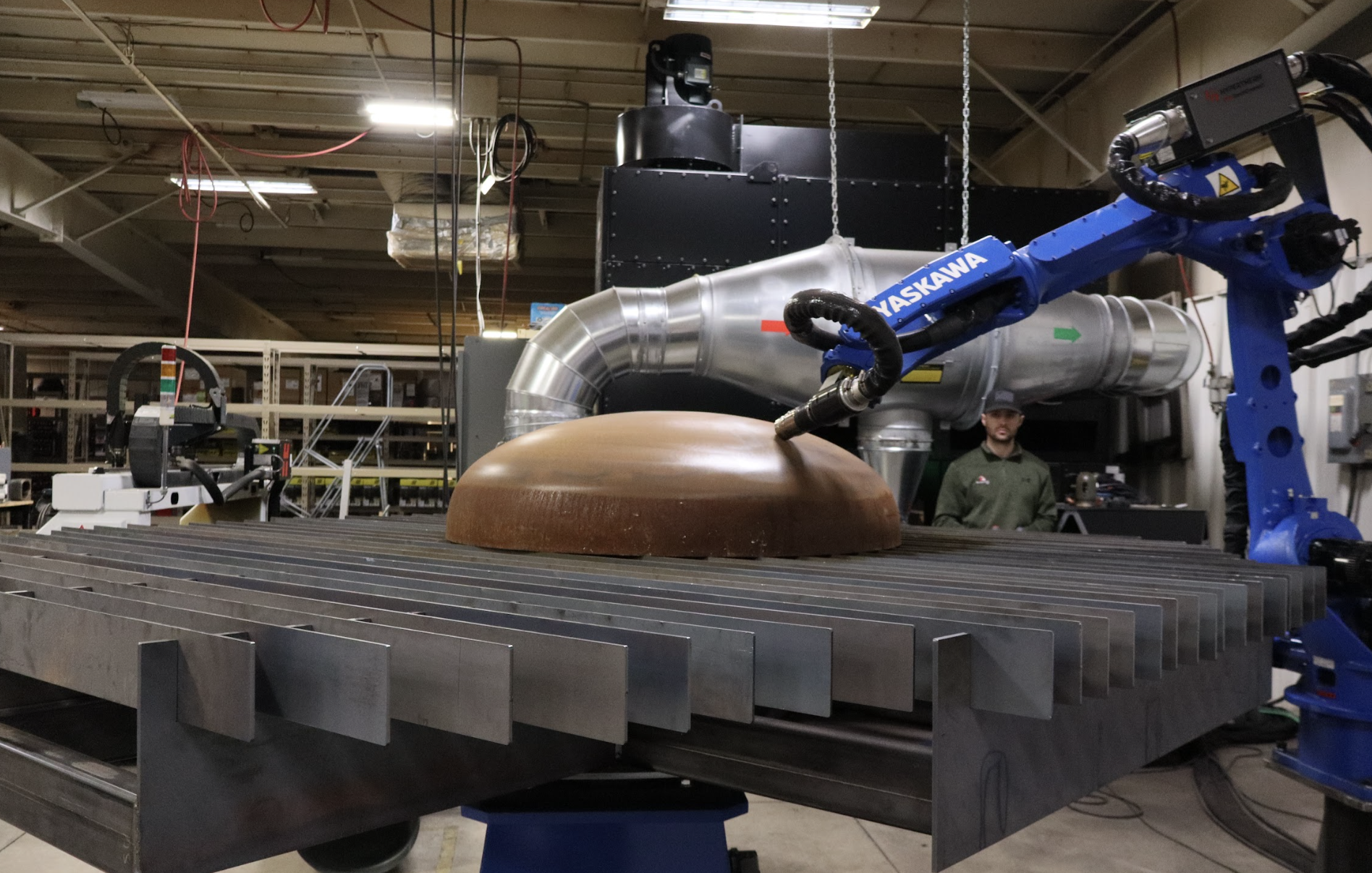

A Complete, Turnkey Dome Cutting Cell
Built for production environments, the cell supports domes up to 8.5 ft diameter, handles complex bevels and multiple holes, and uses offline CAD-driven programming for faster changeovers and easier adoption.
Highlights:
Six-axis robot with ±0.03 mm repeatability
Servo-driven indexer with 1,000 kg capacity
Hypertherm plasma cutting up to 460 amps
Clean cuts from 1/8" to 2 1/2" steel
Offline programming with common CAD formats
Full safety package, installation, commissioning, and support included.
Ready to Transform Your Dome Cutting Process?
If manual dome cutting is limiting your throughput, quality, or ability to scale, we can help. We design and deliver turnkey robotic cutting cells tailored to your parts, volumes, and production goals.
